Test and Verification
NUI offers industry-leading test and verification services to ensure equipment reliability and safety in challenging underwater environments.fgh
About
Our facility in Laksevåg, Bergen, facilities an unique selections of pressure vessels to undertake hyperbaric pressure testing.
For all the chambers, testing can be performed using either gas or liquid as pressure medium. The tests can be monitored over internet on client request.
Our chambers varies from 8 to 50 000 litres and we have the ability to test the equipment up to 1000 bar – equivalent to 10 000 meter depth at sea.
Our personnel has participated in development of national and international test procedures and have conducted technical testing for the last 40 years. We conduct a wide range of test and verification services.
Services
Hyperbaric pressure testing at NUI is a cost effective way to ensure safety, durability, and functionality of equipment used in deep-sea or high-pressure environments.
Function testing in hyperbaric environment
Tests the functionality of devices or systems in simulated deep-sea conditions to ensure operational reliabilit
Collapse testing
Tests the structural integrity of components by applying extreme pressure until failure, ensuring safety margins for subsea installations.
Rapid pressure transients test
Assesses how equipment withstands sudden changes in pressure, simulating emergency or dynamic operational conditions.
Cable insulation testing
Verifies the integrity of electrical cable insulation under pressure, crucial for subsea power transmission.
Loss of buoyancy testing
Evaluates the buoyancy loss in materials or structures under high pressure. Important for ensuring the stability of submersible equipment in deep water.
Test facilities
Asterix | 1000 bar
- Length 3500 mm
- ID 1100 mm
- Vol 3,3 m3
- Max pressure 1000 bar
- Vertical chamber
- Test medium: liquid and gas
For more information, download datasheet.
Reference to applicable standards: EN 33-226 annex 7 , API 17F, API 17D, ISO 13628-6, ISO 13628-4
Obelix | 700 bar
- Length 3500 mm
- ID 1800 mm
- Vol 8.9 m3
- Max pressure 700 bar
- Vertical chamber
- Test medium: liquid and gas
For more information, download datasheet.
Reference to applicable standards:
EN 33-226 annex 7 , API 17F, API 17D,
ISO 13628-6, ISO 13628-4

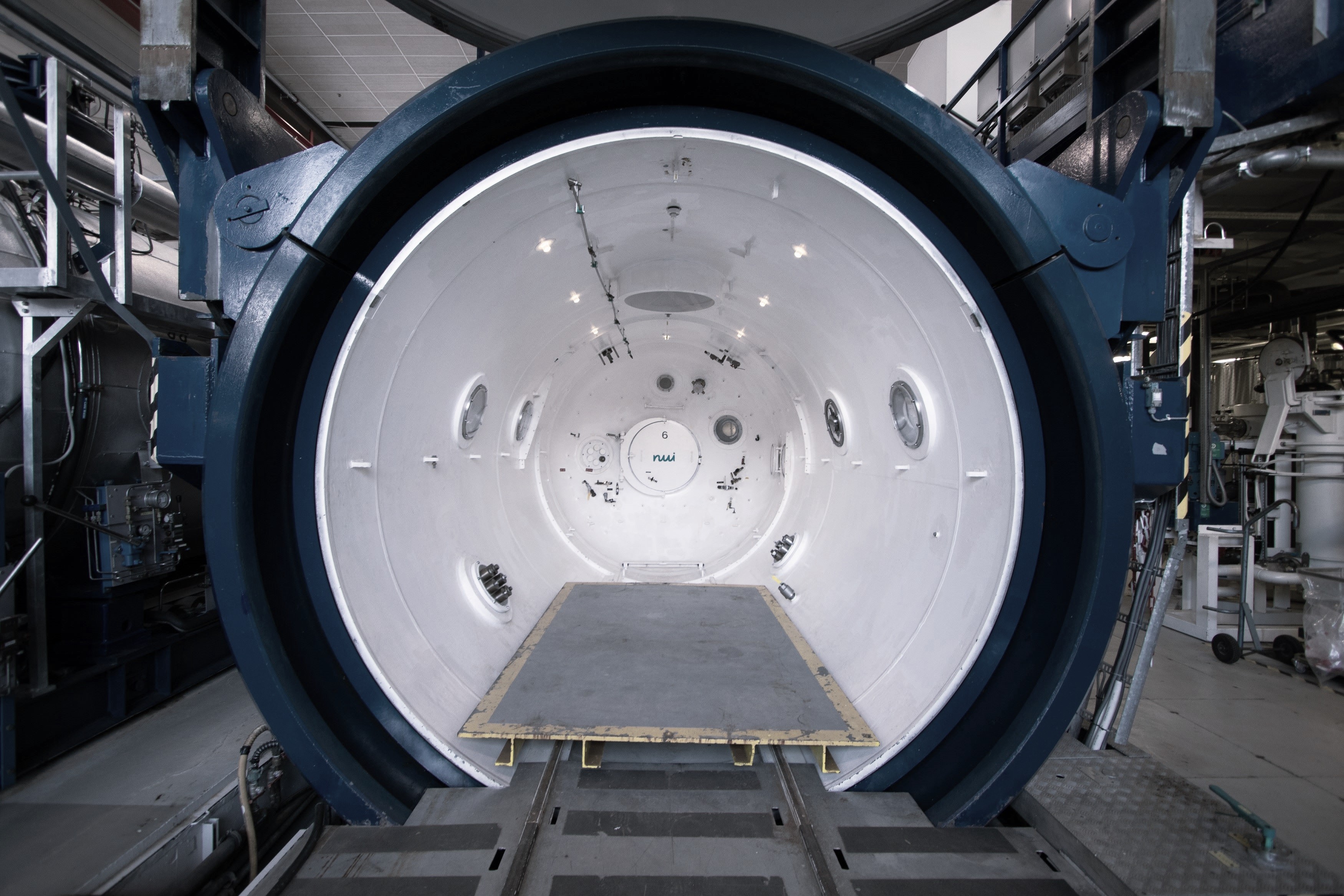

Chamber 4 | 65 bar
- Length 7130 mm
- ID 3000 mm
- Vol 50 m3
- Max pressure 65 bar
- Horizontal chamber
- Test medium: liquid and gas
- Live camera view from inside chamber
- Lights inside the chamber
Chamber 8 | 150 bar
- Length 650 mm
- ID 500 mm
- Vol 0.13 m3
- Max pressure 150 bar
- Horizontal chamber
- Test medium: gas and liquid
.png)
Chamber 9 | 60 bar
- Length 1100 mm
- ID 900 mm
- Vol 0.13 m3
- Max pressure 60 bar
- Horizontal chamber
- Test medium: Gas, fresh water, sea water, heated and cooled
- Set up as test lab for breathing equipment
Chamber 10 | 15 bar
- Length 350 mm
- ID 170 mm
- Vol 0.008 m3
- Max pressure 15 bar
- Opening: 170 mm
In-door Test Pool
- 12t crane for ROV or equipment launch into pool.
- Inspection windows allowing personnel to observe the operation.
- Diving stations that includes hot water, gas and communications. Direct visual observation for supervision of divers through windows.
Subsea Test Areas
- Concrete platform 20 m (Geopositioned for Acoustic testing)
- 300 m² 90 m depth
- 900 m² 20 m depth (quay side)
Subsea Test Well
In the Onarheimsfjord, South of Bergen, NUI has established a subsea well for testing and verification of light intervention equipment.
The well in drilled at depth of 115 m MSL, and is 298m deep. Both wellhead and the steel casing is pressure tested to 5000 psi
